Polarized aluminum electrolytic capacitor, surface mount, 47µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a cylindrical construction with a 6.3mm diameter, 5.8mm height, and 6.6mm width. Operates within a temperature range of -55°C to 105°C, offering a dissipation factor of 0.2% and a leakage current of 3µA. Rated for 2000 hours of life at maximum temperature, with a ripple current of 50mA. Supplied in tape and reel packaging.
PackageRadial
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UUT1C470MCL1GS technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Features
General Purpose
Height
5.8mm
Height - Seated (Max)
0.24inch
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
2.2mm
Leakage Current
3uA
Length
5.8mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
50mA
Ripple Current (AC)
50mA
RoHS Compliant
Yes
Series
UT
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Nichicon UUT1C470MCL1GS Datasheet
Download the complete datasheet for Nichicon UUT1C470MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

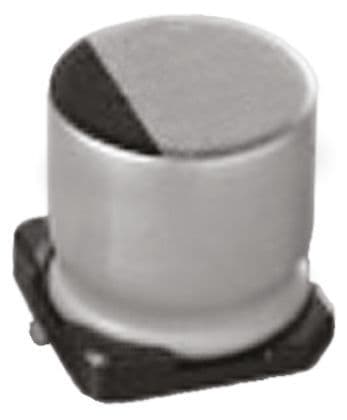

Product Images
