100µF, 100V radial aluminum electrolytic capacitor with 20% tolerance. Features a 10mm diameter, 16mm height, and 5mm lead pitch, designed for through-hole mounting. Offers a ripple current of 340mA, leakage current of 300µA, and a rated life of 2000 hours at 85°C. Operating temperature range is -40°C to 85°C.
PackageRadial
Voltage100V
Capacitance100uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UVK2A101MPD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.08% |
| Height | 16mm |
| Height - Seated (Max) | 0.63inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 300uA |
| Length | 16mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 340mA |
| RoHS Compliant | Yes |
| Series | VK |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVK2A101MPD Datasheet
Download the complete datasheet for Nichicon UVK2A101MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

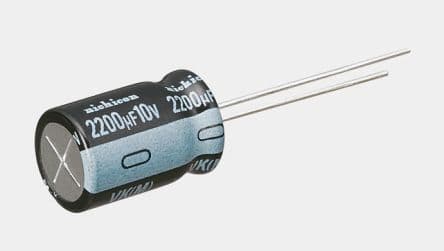

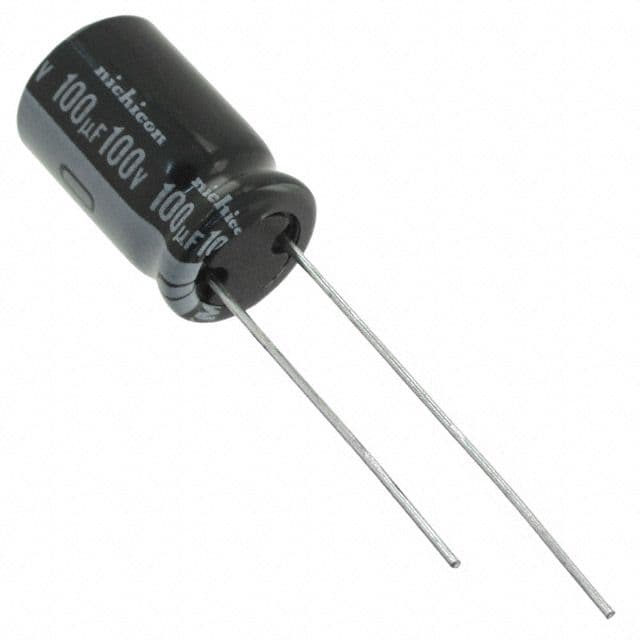

Product Images
