Aluminum electrolytic capacitor with 3.3mF capacitance and 10V DC rated voltage. Features 20% tolerance, 1.45A ripple current, and 990uA leakage current. Radial package with 5mm lead pitch, 12.5mm diameter, and 20mm height. Rated for 2000 hours at 85°C, with a dissipation factor of 0.24%. RoHS compliant and lead-free.
PackageRadial
Capacitance3.3mF
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVR1A332MHD technical specifications.
General
| Capacitance | 3.3mF |
| Package/Case | Radial |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.24% |
| Height | 20mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 990uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.45A |
| RoHS Compliant | Yes |
| Series | UVR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR1A332MHD Datasheet
Download the complete datasheet for Nichicon UVR1A332MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

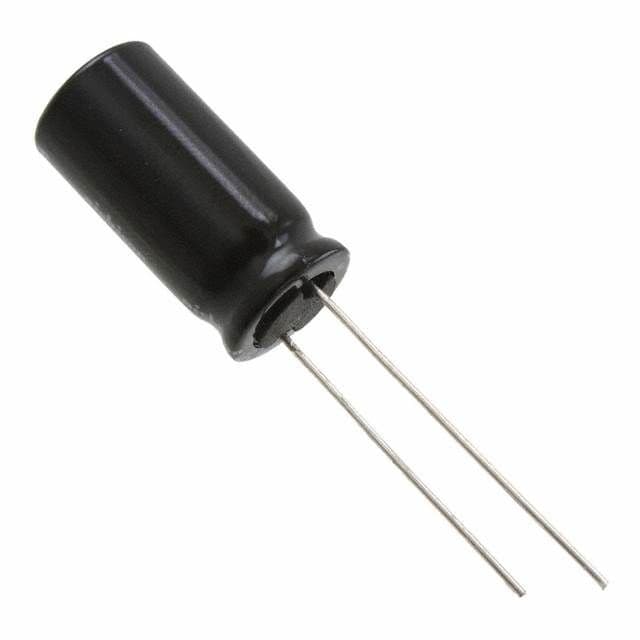

Product Images
