Aluminum electrolytic capacitor with 1000µF capacitance and 25V DC rated voltage. Features a 20% tolerance, 960mA ripple current, and a 2000-hour life at 85°C. Radial construction with 5mm lead pitch, 0.6mm lead diameter, and 10mm diameter by 20mm height. Through-hole mounting suitable for PCB applications.
Voltage25V
Capacitance1mF
Voltage Rating25V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Nichicon UVR1E102MPD technical specifications.
General
| Capacitance | 1mF |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 750uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 960mA |
| RoHS Compliant | Yes |
| Series | VR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR1E102MPD Datasheet
Download the complete datasheet for Nichicon UVR1E102MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

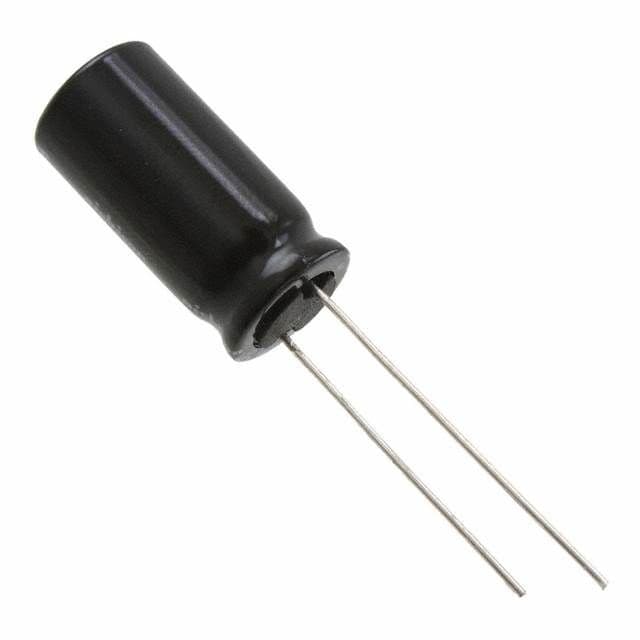

Product Images
