Radial leaded, through-hole mount aluminum electrolytic capacitor with 2200µF capacitance and 63V DC rated voltage. Features 20% tolerance, 85°C maximum operating temperature, and 2.3A ripple current. Dissipation factor is 0.1%, with a leakage current of 4.158mA. Dimensions include an 18mm diameter and 35.5mm height. RoHS compliant.
Voltage63V
Storage35.5mm
Capacitance2.2mF
Voltage Rating63V
Quick Jump:
Technical Specifications
Nichicon UVR1J222MHD technical specifications.
General
| Capacitance | 2.2mF |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.1% |
| Height | 35.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 4.158mA |
| Length | 35.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.3A |
| RoHS Compliant | Yes |
| Series | VR |
| Size | 35.5mm |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR1J222MHD Datasheet
Download the complete datasheet for Nichicon UVR1J222MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

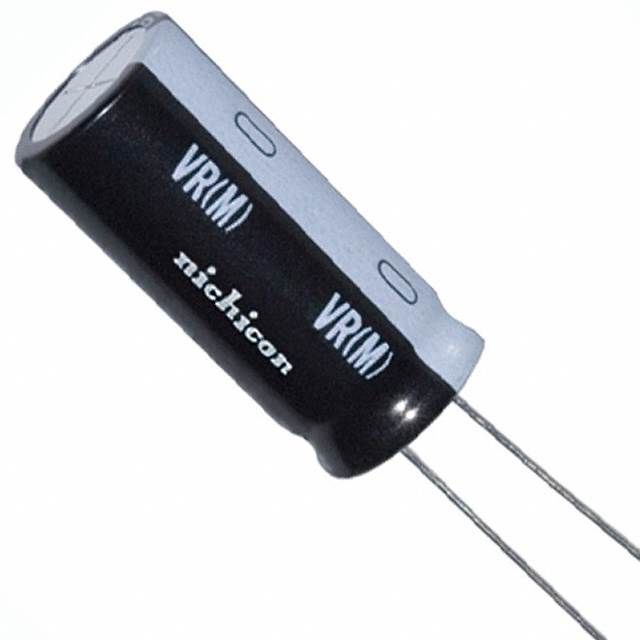

Product Images
