Standard aluminum electrolytic capacitor with 10µF capacitance and 35V DC rated voltage. Features 20% tolerance, 60mA ripple current, and 10.5µA leakage current. Radial package with 5mm lead pitch and 0.5mm lead diameter, measuring 5 x 11mm. Designed for through-hole mounting and operating temperatures from -40°C to 85°C, with a 2000-hour life expectancy.
PackageRadial
Capacitance10uF
Voltage Rating35V
MountingThrough Hole
Quick Jump:
Technical Specifications
Nichicon UVR1V100MDD1TA technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.14% |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Leakage Current | 10.5uA |
| Length | 11mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 60mA |
| RoHS Compliant | Yes |
| Series | VR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR1V100MDD1TA Datasheet
Download the complete datasheet for Nichicon UVR1V100MDD1TA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

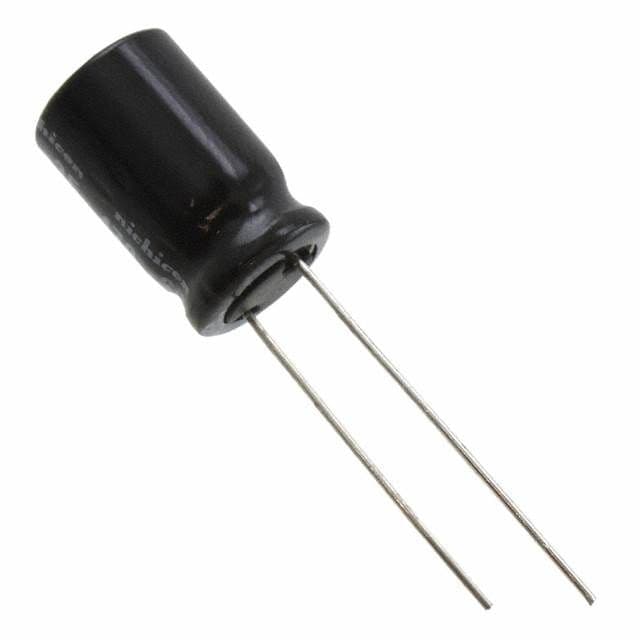

Product Images
