Radial aluminum electrolytic capacitor featuring 4700µF capacitance and a 35V DC rated voltage. This polarized, wet aluminum capacitor offers a 20% tolerance and a dissipation factor of 0.14%. Designed for through-hole PCB mounting, it has a 7.5mm lead pitch, 0.8mm lead diameter, and operates within a -40°C to 85°C temperature range. RoHS compliant with a 2.7A ripple current rating and 2000-hour life expectancy.
PackageRadial
Voltage35V
Capacitance4.7mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UVR1V472MHD technical specifications.
General
| Capacitance | 4.7mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.14% |
| Height | 35.5mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Leakage Current | 4.935mA |
| Length | 35.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.7A |
| RoHS Compliant | Yes |
| Series | VR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR1V472MHD Datasheet
Download the complete datasheet for Nichicon UVR1V472MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

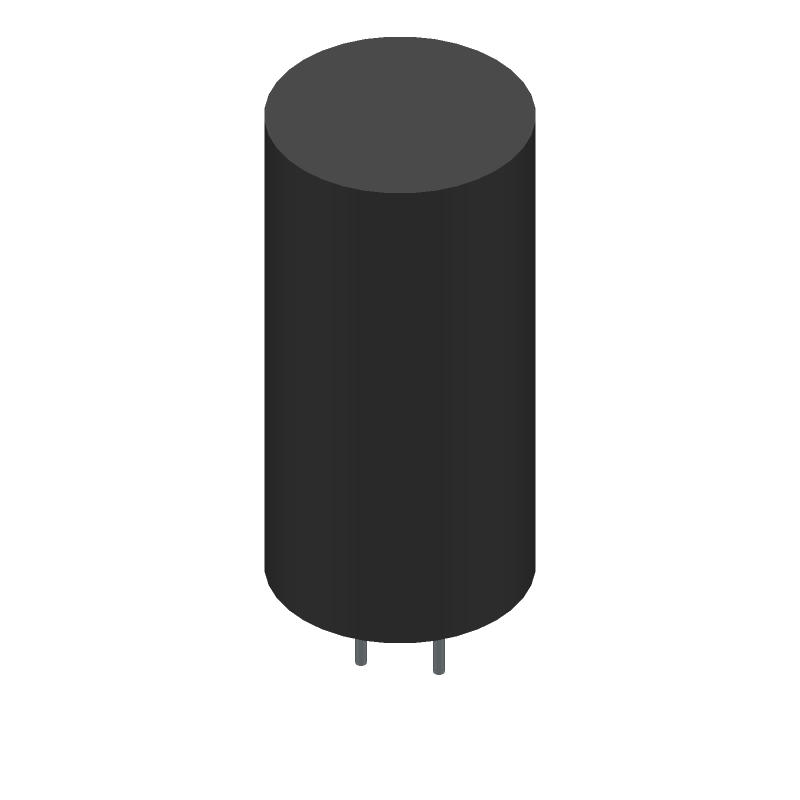

Product Images
