Aluminum electrolytic capacitor, 10µF capacitance, 250V DC rated voltage, 20% tolerance. Features radial construction with a 5mm lead pitch, 0.6mm lead diameter, and dimensions of 10mm diameter by 16mm height. Offers 105mA ripple current, 200µA leakage current, and a dissipation factor of 0.2%. Rated for 2000 hours at 85°C, with an operating temperature range of -40°C to 85°C. Lead-free and RoHS compliant, suitable for through-hole PCB mounting.
Voltage250V
Capacitance10uF
Voltage Rating250V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Nichicon UVR2E100MPD technical specifications.
General
Capacitance
10uF
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.2%
Height
16mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
200uA
Length
16mm
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
105mA
RoHS Compliant
Yes
Series
VR
Termination
Radial
Tolerance
20%
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVR2E100MPD Datasheet
Download the complete datasheet for Nichicon UVR2E100MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

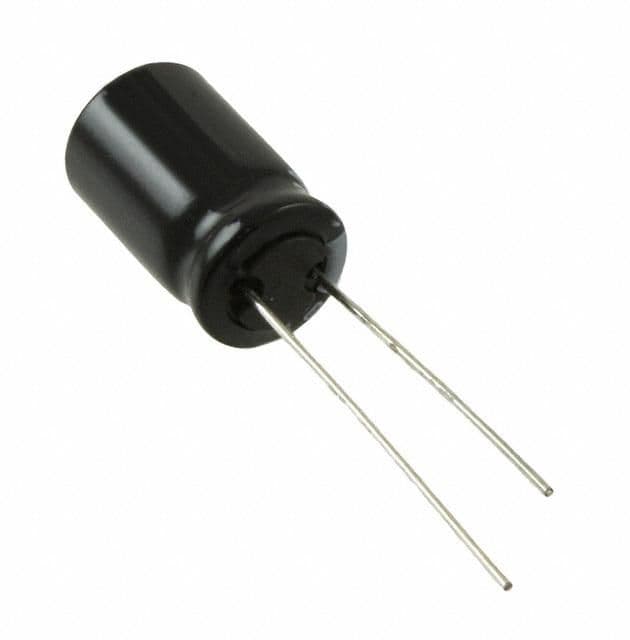

Product Images
