22µF, 250V radial aluminum electrolytic capacitor with 20% tolerance. Features a 12.5mm diameter, 20mm height, and 5mm lead pitch. Offers a ripple current of 190mA, leakage current of 320µA, and a dissipation factor of 0.2%. Rated for 2000 hours at 85°C, with an operating temperature range of -40°C to 85°C. Lead-free and RoHS compliant.
PackageRadial
Voltage250V
Capacitance22uF
Voltage Rating250V
Quick Jump:
Technical Specifications
Nichicon UVR2E220MHD technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 12.5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Leakage Current | 320uA |
| Length | 20mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 190mA |
| RoHS Compliant | Yes |
| Series | VR |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 250V |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVR2E220MHD Datasheet
Download the complete datasheet for Nichicon UVR2E220MHD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

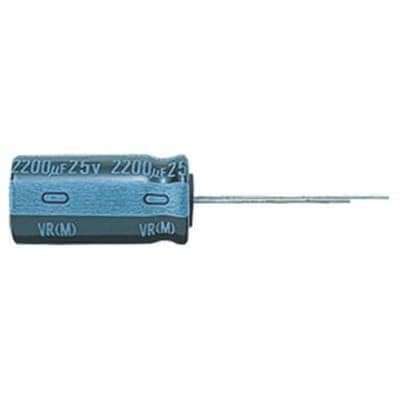

Product Images
