Aluminum electrolytic capacitor with 1000µF capacitance and 6.3V DC rated voltage. Features a 20% tolerance, 390mA ripple current, and 1000-hour life at 105°C. Radial package measures 8mm in diameter and 11.5mm in height with a 3.5mm lead pitch. Through-hole mounting and RoHS compliant.
PackageRadial
Voltage6.3V
Capacitance1mF
Voltage Rating6.3V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon UVY0J102MPD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon UVY0J102MPD technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dissipation Factor | 0.28% |
| Height | 11.5mm |
| Height - Seated (Max) | 0.512inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 189uA |
| Length | 11.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 390mA |
| RoHS Compliant | Yes |
| Series | VY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY0J102MPD Datasheet
Download the complete datasheet for Nichicon UVY0J102MPD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

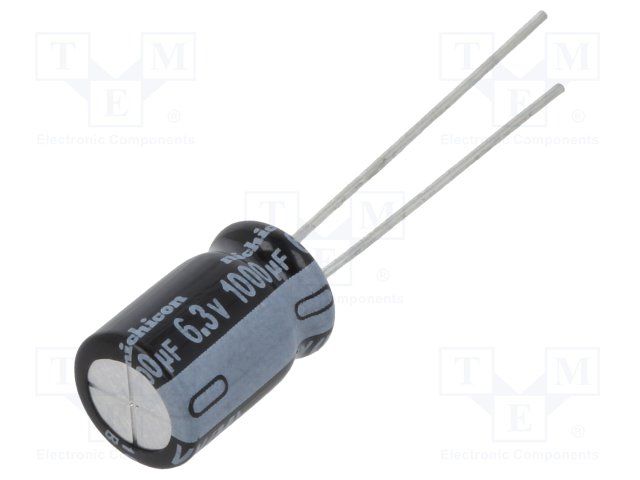

Product Images
