Aluminum electrolytic capacitor with 1mF capacitance and 16V DC rated voltage. Features a 20% tolerance, 500mA ripple current, and 480uA leakage current. Radial package measures 10mm diameter by 12.5mm height, with a 5mm lead pitch and 0.6mm lead diameter. Operates from -55°C to 105°C with a 1000-hour life rating. Through-hole mounting for PCB applications.
PackageRadial
Voltage16V
Capacitance1mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Nichicon UVY1C102MPD1TD technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Height | 12.5mm |
| Height - Seated (Max) | 0.551inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 0.197inch |
| Leakage Current | 480uA |
| Length | 12.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ripple Current | 500mA |
| RoHS Compliant | Yes |
| Series | VY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY1C102MPD1TD Datasheet
Download the complete datasheet for Nichicon UVY1C102MPD1TD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

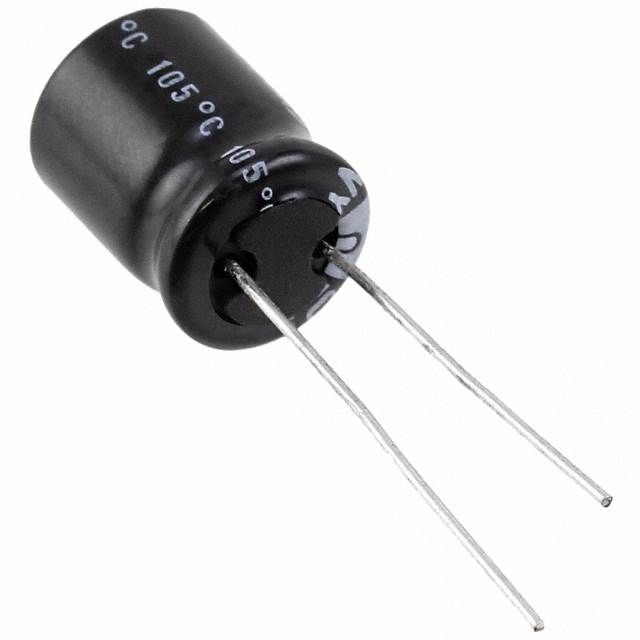

Product Images
