Aluminum electrolytic capacitor with 1000µF capacitance and 25V DC rated voltage. Features a 20% tolerance, 610mA ripple current, and 750µA leakage current. Radial package measures 10mm in diameter and 16mm in height, with 5mm lead pitch and 0.6mm lead diameter. Operates from -55°C to 105°C with a rated life of 1000 hours at 105°C. Through-hole mounting for PCB applications, supplied in bulk packaging.
PackageRadial
Voltage25V
Capacitance1mF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UVY1E102MPD technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 10mm |
| Dissipation Factor | 0.16% |
| Height | 16mm |
| Lead Diameter | 0.6mm |
| Lead Pitch | 5mm |
| Leakage Current | 750uA |
| Length | 16mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 610mA |
| RoHS Compliant | Yes |
| Series | VY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY1E102MPD Datasheet
Download the complete datasheet for Nichicon UVY1E102MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

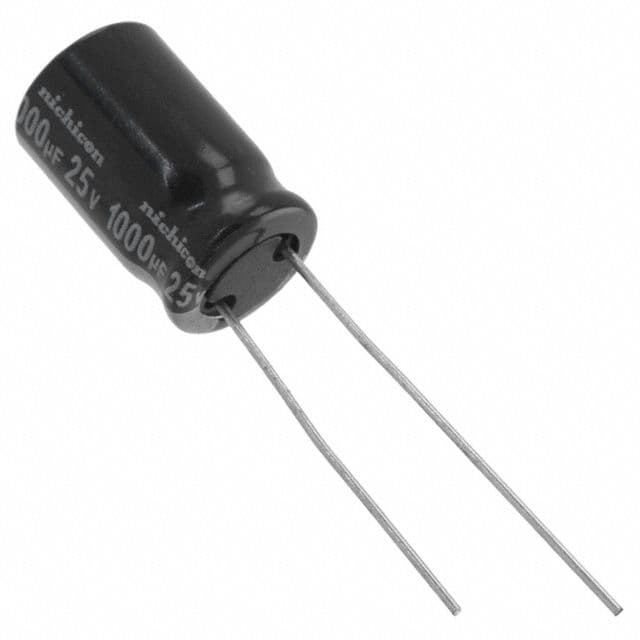

Product Images
