Standard aluminum electrolytic capacitor with 2.2mF capacitance and 63V DC rated voltage. Features 20% tolerance, 1.65A ripple current, and a maximum operating temperature of 105°C. This radial component has a 7.5mm lead pitch, 0.8mm lead diameter, and dimensions of 18mm diameter by 35.5mm height. It offers 1000 hours of life at rated conditions and is RoHS compliant.
PackageRadial
Voltage63V
Capacitance2.2mF
Voltage Rating63V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon UVY1J222MHD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon UVY1J222MHD technical specifications.
General
| Capacitance | 2.2mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 18mm |
| Dissipation Factor | 0.1% |
| Features | General Purpose |
| Height | 35.5mm |
| Height - Seated (Max) | 1.476inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 4.158mA |
| Length | 35.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 1.65A |
| RoHS Compliant | Yes |
| Series | VY |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 63V |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVY1J222MHD Datasheet
Download the complete datasheet for Nichicon UVY1J222MHD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

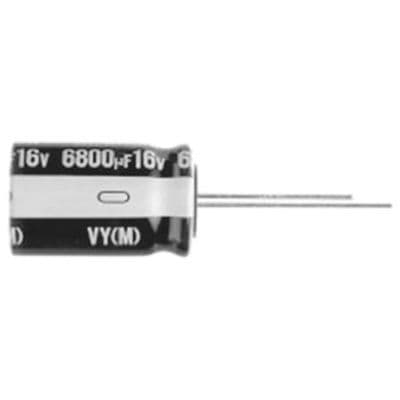

Product Images
