Standard aluminum electrolytic capacitor with 1µF capacitance and 50V DC rated voltage. Features a 20% tolerance, 13mA ripple current capability, and 1000-hour life at 105°C. This radial component has a 5mm diameter, 11mm height, 2mm lead pitch, and 0.5mm lead diameter, suitable for through-hole PCB mounting. Operating temperature range is -55°C to 105°C with a low leakage current of 4µA.
PackageRadial
Voltage50V
Capacitance1uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Nichicon UVZ1H010MDD technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.12% |
| Height | 11mm |
| Lead Diameter | 0.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 2mm |
| Leakage Current | 4uA |
| Length | 11mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 200 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ripple Current | 13mA |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ1H010MDD Datasheet
Download the complete datasheet for Nichicon UVZ1H010MDD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

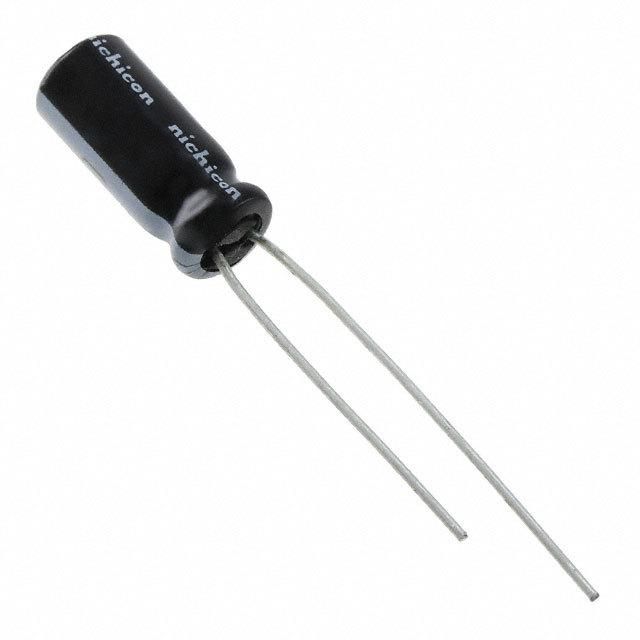

Product Images
