100µF 50V radial aluminum electrolytic capacitor with 20% tolerance. Features 105°C maximum operating temperature, 1000-hour life, and 190mA ripple current. This through-hole component has an 8mm diameter, 11.5mm height, and 3.5mm lead pitch. It offers 150µA leakage current and a dissipation factor of 0.12%.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon UVZ1H101MPD1TD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon UVZ1H101MPD1TD technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.12% |
| Height | 11.5mm |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Lead/Base Style | Straight |
| Leakage Current | 150uA |
| Length | 11.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 190mA |
| RoHS Compliant | Yes |
| Series | VZ |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UVZ1H101MPD1TD Datasheet
Download the complete datasheet for Nichicon UVZ1H101MPD1TD to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

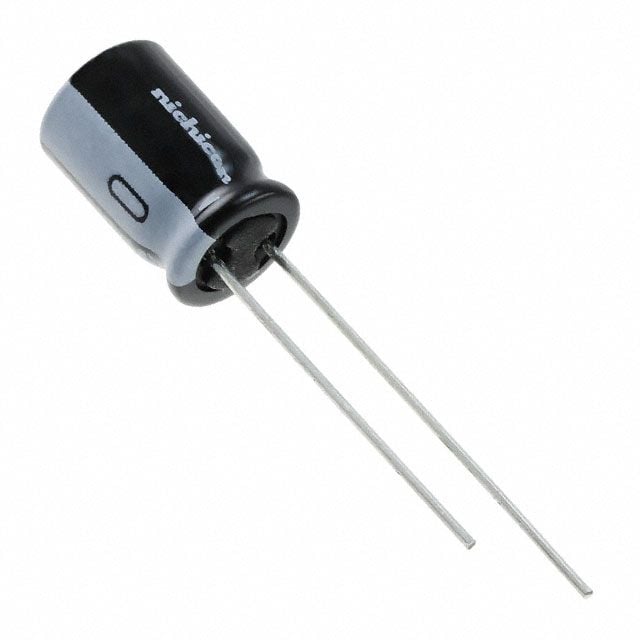

Product Images
