Aluminum electrolytic capacitor with 47µF capacitance and 100V DC rated voltage. Features a 20% tolerance, 165mA ripple current, and a 1000-hour life at 105°C. Radial package measures 10mm diameter by 12.5mm height with a 5mm lead pitch. Through-hole mounting suitable for PCB applications.
PackageRadial
Voltage100V
Capacitance47uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Nichicon UVZ2A470MPD technical specifications.
General
Capacitance
47uF
Package/Case
Radial
Construction
RADIAL
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.08%
Height
12.5mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
141uA
Length
12.5mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Ripple Current
165mA
RoHS Compliant
Yes
Series
VZ
Termination
Radial
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Nichicon UVZ2A470MPD Datasheet
Download the complete datasheet for Nichicon UVZ2A470MPD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

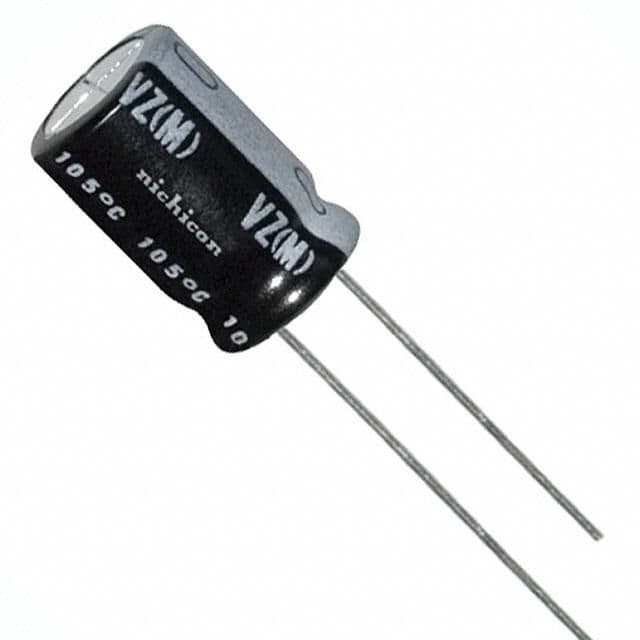

Product Images
