100µF, 10V surface mount aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter and 5.8mm height, offering 2000 hours of life at 105°C. This standard series capacitor has a ripple current of 230mA, leakage current of 82.5µA, and impedance of 440mR. Designed for general purpose applications, it is supplied in tape and reel packaging.
PackageRadial
Voltage10V
Capacitance100uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Nichicon UWD1A101MCL1GS technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.24% |
| Features | General Purpose |
| Height | 5.8mm |
| Height - Seated (Max) | 0.24inch |
| Impedance | 440mR |
| Leakage Current | 82.5uA |
| Length | 5.8mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ripple Current | 230mA |
| RoHS Compliant | Yes |
| Series | WD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWD1A101MCL1GS Datasheet
Download the complete datasheet for Nichicon UWD1A101MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

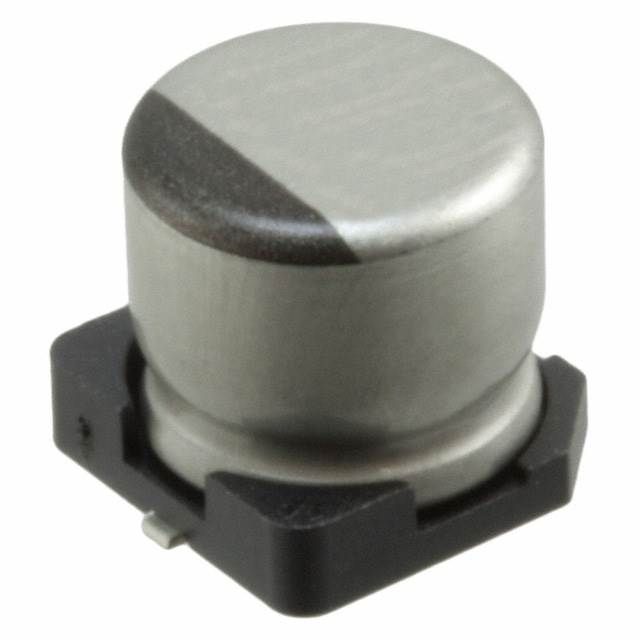

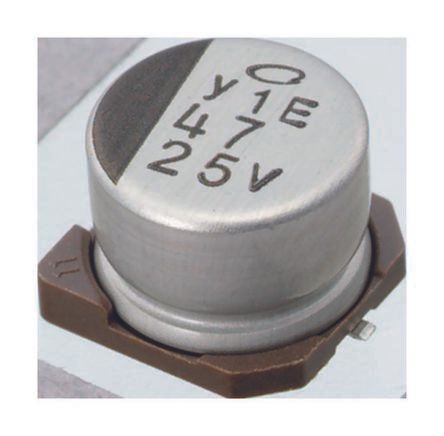

Product Images
