Standard aluminum electrolytic capacitor with 100µF capacitance and 16V DC rated voltage. Features 20% tolerance, 150mA ripple current, and a low dissipation factor of 0.16%. Operates from -55°C to 105°C with a 1000-hour life at rated conditions. Surface mountable in an 8mm diameter by 6.2mm height cylindrical package, supplied on tape and reel.
PackageRadial
Capacitance100uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWF1C101MCL1GS technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Features | General Purpose |
| Height | 6.2mm |
| Height - Seated (Max) | 0.315inch |
| Impedance | 800mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 6.2mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 150mA |
| Ripple Current (AC) | 150mA |
| RoHS Compliant | Yes |
| Series | WF |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWF1C101MCL1GS Datasheet
Download the complete datasheet for Nichicon UWF1C101MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

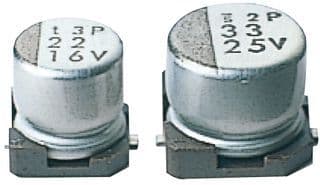

Product Images
