Aluminum electrolytic capacitor with 2.2µF capacitance and 35V DC voltage rating. Features 20% tolerance, 50mA ripple current, and 1000 hours of life at 105°C. This surface mount component has a cylindrical construction, 4mm diameter, 5.4mm height, and 0.12% dissipation factor. Designed for general purpose applications, it offers low leakage current of 3µA and 5R impedance.
PackageRadial
Capacitance2.2uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWF1V2R2MCL1GB technical specifications.
General
Capacitance
2.2uF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dissipation Factor
0.12%
Features
General Purpose
Height
5.4mm
Height - Seated (Max)
0.157inch
Impedance
5R
Leakage Current
3uA
Length
5.4mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
1000°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
50mA
RoHS Compliant
Yes
Series
WF
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UWF1V2R2MCL1GB Datasheet
Download the complete datasheet for Nichicon UWF1V2R2MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

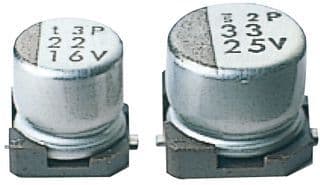

Product Images
