Aluminum electrolytic capacitor with 3.3µF capacitance and 25V voltage rating. Features 20% tolerance, 12mA ripple current, and 10µA leakage current. Designed for surface mount applications with a 5mm diameter and 5.4mm length. Operates within a temperature range of -40°C to 85°C, offering 1000 hours of life.
PackageRadial
Capacitance3.3uF
Voltage Rating25V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWP1E3R3MCL1GB technical specifications.
General
| Capacitance | 3.3uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dissipation Factor | 0.17% |
| Height | 5.3mm |
| Height - Seated (Max) | 0.217inch |
| Lead Free | Lead Free |
| Leakage Current | 10uA |
| Length | 5.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 12mA |
| RoHS Compliant | Yes |
| Series | WP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWP1E3R3MCL1GB Datasheet
Download the complete datasheet for Nichicon UWP1E3R3MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

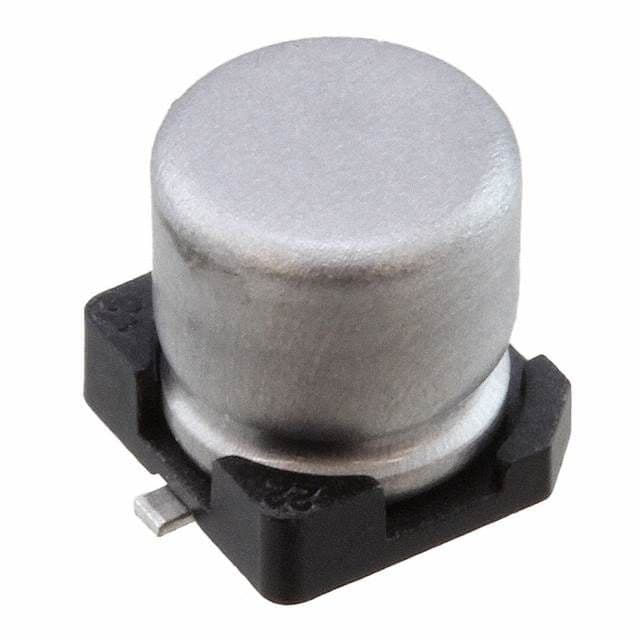

Product Images
