Aluminum electrolytic capacitor, 1µF capacitance, 50V DC rated voltage, 20% tolerance. Features a 4mm diameter, 5.4mm height cylindrical construction with surface mount termination. Operates within a -40°C to 85°C temperature range, offering 1000 hours of life at rated conditions. Includes 8.4mA ripple current capability and 16µA leakage current.
PackageRadial
Capacitance1uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWP1H010MCL1GB technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 5.4mm |
| Height - Seated (Max) | 0.217inch |
| Leakage Current | 16uA |
| Length | 5.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 8.4mA |
| RoHS Compliant | Yes |
| Series | WP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWP1H010MCL1GB Datasheet
Download the complete datasheet for Nichicon UWP1H010MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

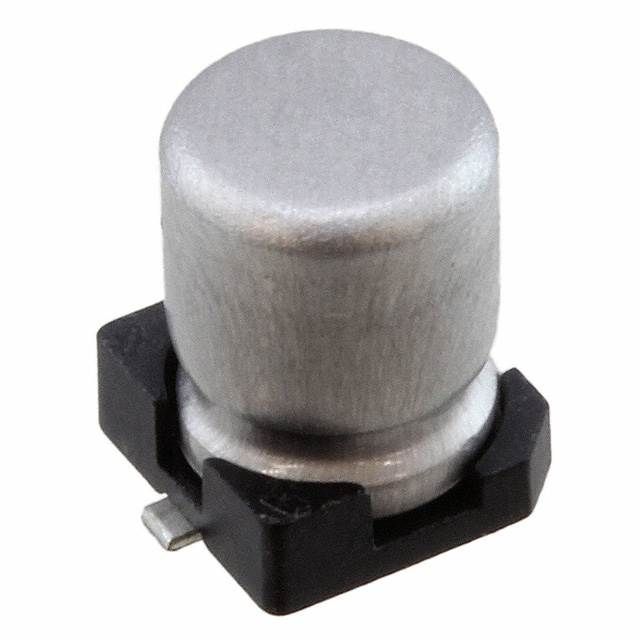

Product Images
