PackageRadial
Capacitance220nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWP1HR22MCL1GB technical specifications.
General
Capacitance
220nF
Package/Case
Radial
Construction
Cylindrical
Diameter
4mm
Dissipation Factor
0.15%
Height
4.3mm
Height - Seated (Max)
0.217inch
Leakage Current
10uA
Length
5.4mm
Life (Hours)
1000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
2mA
RoHS Compliant
Yes
Series
WP
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
50V
DC Rated Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Nichicon UWP1HR22MCL1GB Datasheet
Download the complete datasheet for Nichicon UWP1HR22MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

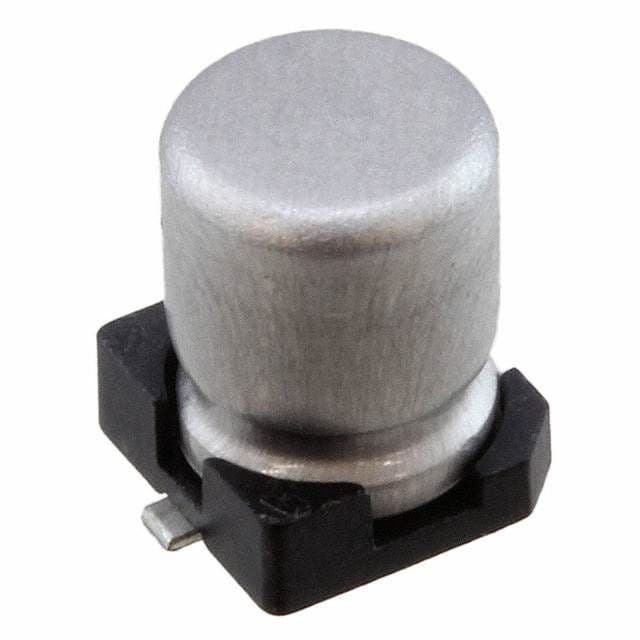

Product Images
