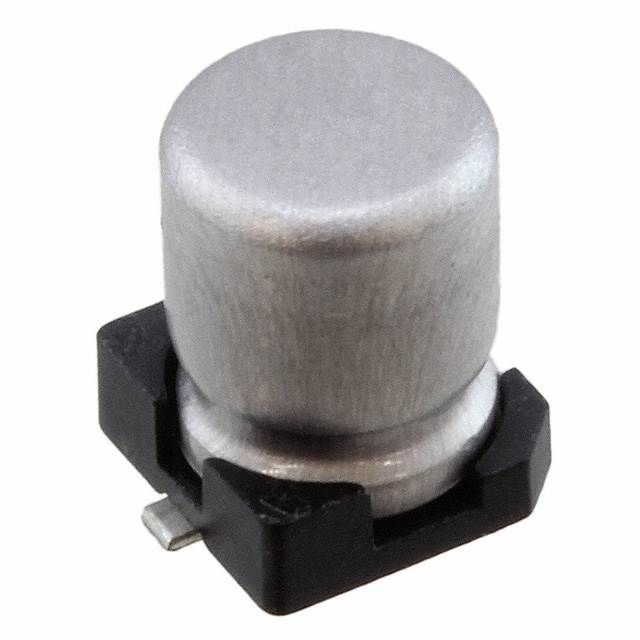

The Nichicon WP Series 470nF 50V radial aluminum electrolytic capacitor features a cylindrical construction with a 4mm diameter and 4.3mm height. It has a maximum operating temperature of 85°C and a minimum operating temperature of 1000°C. The capacitor is surface mountable and RoHS compliant. It has a capacitance of 470nF, a dissipation factor of 0.15%, and a leakage current of 10uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nichicon UWP1HR47MCL1GB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 470nF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dissipation Factor | 0.15% |
| Height | 4.3mm |
| Height - Seated (Max) | 0.157inch |
| Leakage Current | 10uA |
| Length | 5.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 1000°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 4mA |
| RoHS Compliant | Yes |
| Series | WP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
