PackageRadial
Capacitance3.3uF
Voltage Rating35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWP1V3R3MCL1GB technical specifications.
General
Capacitance
3.3uF
Package/Case
Radial
Construction
Cylindrical
Diameter
5mm
Dissipation Factor
0.15%
Height
5.3mm
Height - Seated (Max)
0.197inch
Leakage Current
10uA
Length
5.4mm
Life (Hours)
1000Hour
Max Operating Temperature
85°C
Min Operating Temperature
1000°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Ripple Current
16mA
RoHS Compliant
Yes
Series
WP
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UWP1V3R3MCL1GB Datasheet
Download the complete datasheet for Nichicon UWP1V3R3MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

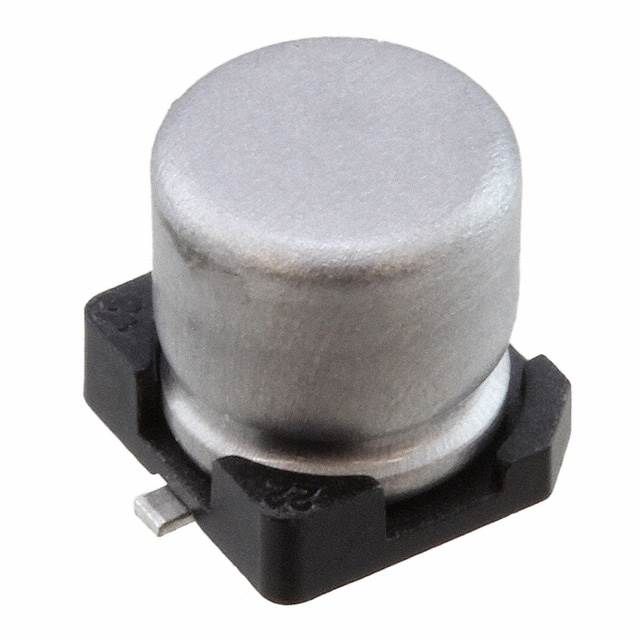

Product Images
