100µF, 6.3V aluminum electrolytic capacitor with 20% tolerance. Features a 6.3mm diameter, 5.4mm height, and 5.4mm length in a cylindrical, radial construction. Designed for surface mount (SMD/SMT) applications with a 1000-hour life at 105°C maximum operating temperature. Offers 60mA ripple current and 3µA leakage current, packaged in tape and reel.
PackageRadial
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon UWT0J101MCL1GB technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dissipation Factor | 0.3% |
| Height | 5.4mm |
| Leakage Current | 3uA |
| Length | 5.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 60mA |
| Ripple Current (AC) | 60mA |
| RoHS Compliant | Yes |
| Series | WT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWT0J101MCL1GB Datasheet
Download the complete datasheet for Nichicon UWT0J101MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

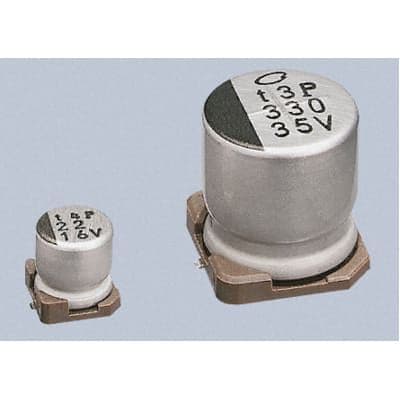

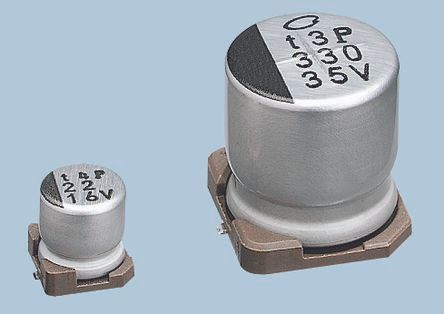

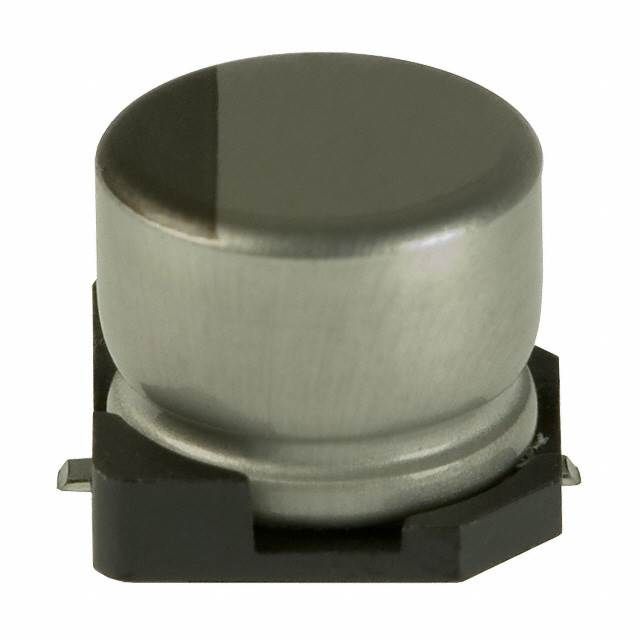

Product Images
