Aluminum electrolytic capacitor with 330µF capacitance and 6.3V DC rated voltage, featuring a 20% tolerance. This standard series component offers a 105°C maximum operating temperature and 1000-hour life expectancy. Designed for surface mount applications, it has a 6.3mm diameter and 7.7mm height, with a 2.2mm lead pitch and 0.8mm lead diameter. The capacitor exhibits a 105mA ripple current and 3µA leakage current, with a dissipation factor of 0.3%.
PackageRadial
Voltage6.3V
Capacitance330uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon UWT0J331MCL1GS technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.3% |
| Height | 7.7mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.2mm |
| Leakage Current | 3uA |
| Length | 7.7mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 900 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 105mA |
| RoHS Compliant | Yes |
| Series | WT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWT0J331MCL1GS Datasheet
Download the complete datasheet for Nichicon UWT0J331MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

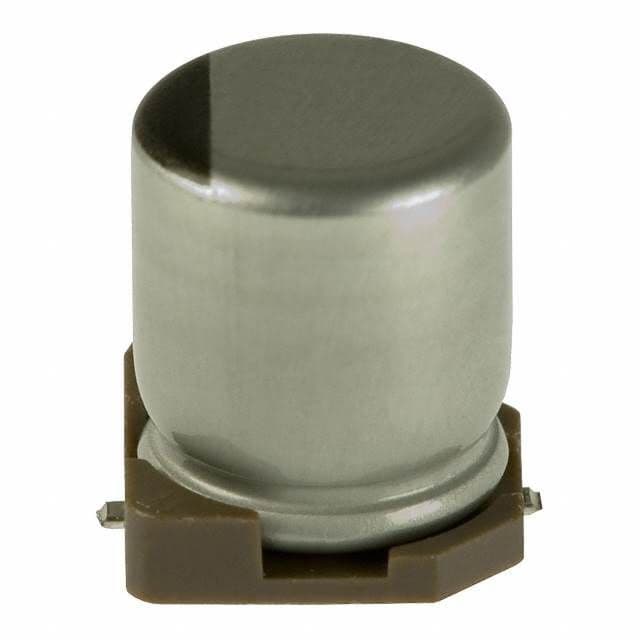

Product Images
