Aluminum electrolytic capacitor, 220µF capacitance, 10V DC rated voltage, and 20% tolerance. Features a 105°C maximum operating temperature, 1000-hour life, and 105mA ripple current. This surface mount component has a 6.3mm diameter and 7.7mm height, with a leakage current of 22µA. Packaged in tape and reel for automated assembly.
PackageRadial
Capacitance220uF
Voltage Rating10V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWT1A221MCL1GS technical specifications.
General
Capacitance
220uF
Package/Case
Radial
Construction
Cylindrical
Diameter
6.3mm
Dielectric Material
Aluminium
Height
7.7mm
Lead Free
Lead Free
Leakage Current
22uA
Length
7.7mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
900
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
105mA
Ripple Current (AC)
105mA
RoHS Compliant
Yes
Series
UWT
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Compliance
RoHS
Compliant
Datasheet
Nichicon UWT1A221MCL1GS Datasheet
Download the complete datasheet for Nichicon UWT1A221MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

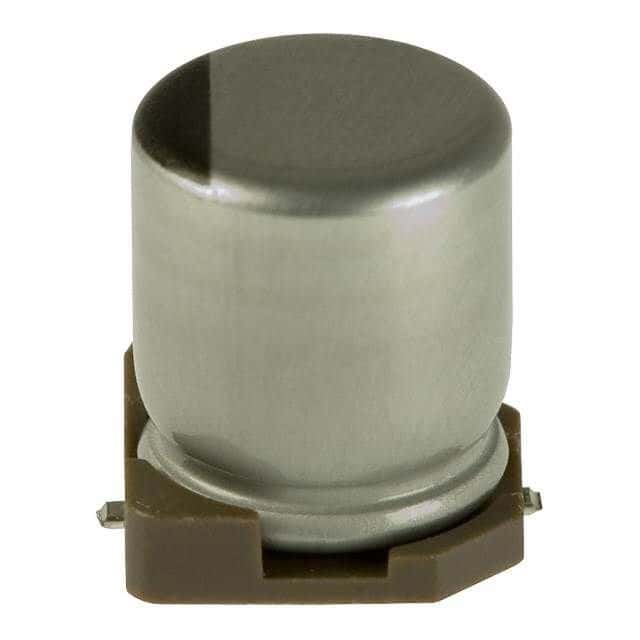

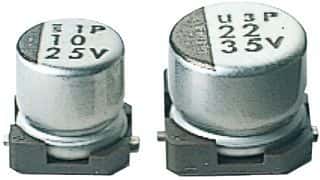

Product Images
