Aluminum electrolytic capacitor, 220µF capacitance, 25V DC rated voltage, and 20% tolerance. Features a cylindrical construction with 8mm diameter and 10mm height, designed for surface mount (SMD/SMT) applications. Offers a ripple current of 155mA, leakage current of 3µA, and a life expectancy of 1000 hours at 105°C maximum operating temperature. This RoHS compliant component operates from -55°C to 105°C.
PackageSMD/SMT
Voltage25V
Capacitance220uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UWT1E221MNL1GS technical specifications.
General
| Capacitance | 220uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Height | 10mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 3uA |
| Length | 10mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 155mA |
| Ripple Current (AC) | 155mA |
| RoHS Compliant | Yes |
| Series | WT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWT1E221MNL1GS Datasheet
Download the complete datasheet for Nichicon UWT1E221MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

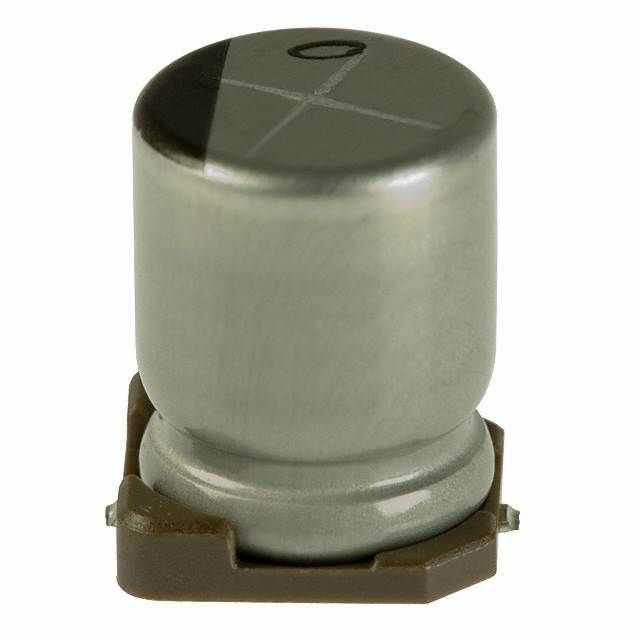

Product Images
