330µF, 25V polarized aluminum electrolytic capacitor with 20% tolerance. Features a cylindrical construction, surface mount termination, and a 105°C maximum operating temperature. Dissipation factor is 0.16%, leakage current is 3µA, and ripple current is 190mA. Designed for PCB mounting with a 1000-hour life rating.
PackageRadial
Voltage25V
Capacitance330uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Nichicon UWT1E331MNL1GS technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Dissipation Factor
0.16%
Height
10mm
Lead Free
Lead Free
Leakage Current
3uA
Length
10mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
190mA
Ripple Current (AC)
190mA
RoHS Compliant
Yes
Series
WT
Termination
SMD/SMT
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
Nichicon UWT1E331MNL1GS Datasheet
Download the complete datasheet for Nichicon UWT1E331MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

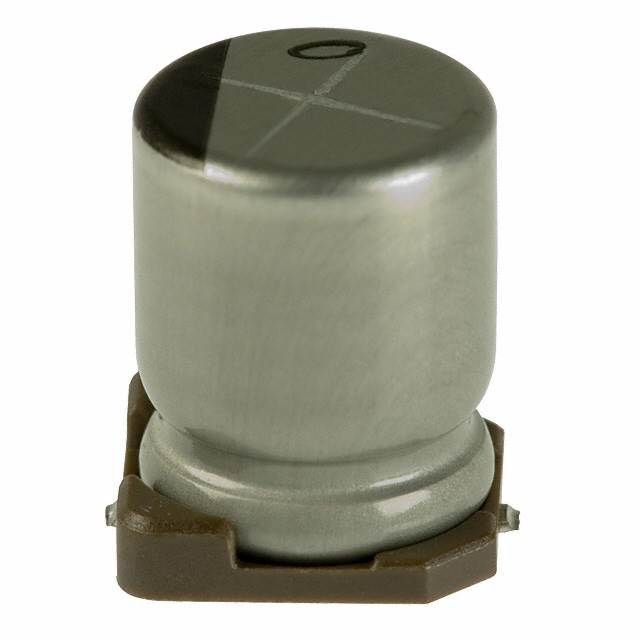

Product Images
