Aluminum electrolytic capacitor, 1µF capacitance, 50V DC rated voltage, 20% tolerance. Features a 3mm diameter, 5.4mm height, cylindrical construction, and surface mount termination. Operates from -55°C to 105°C with a 1000-hour life rating. Dissipation factor is 0.14%, leakage current is 480µA, and ripple current is 5.9mA. Packaged in tape and reel for automated assembly.
PackageRadial
Capacitance1uF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Nichicon UWT1H010MCL2GB technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.14% |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 480uA |
| Length | 5.4mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 5.9mA |
| Ripple Current (AC) | 5.9mA |
| RoHS Compliant | Yes |
| Series | UWT |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWT1H010MCL2GB Datasheet
Download the complete datasheet for Nichicon UWT1H010MCL2GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

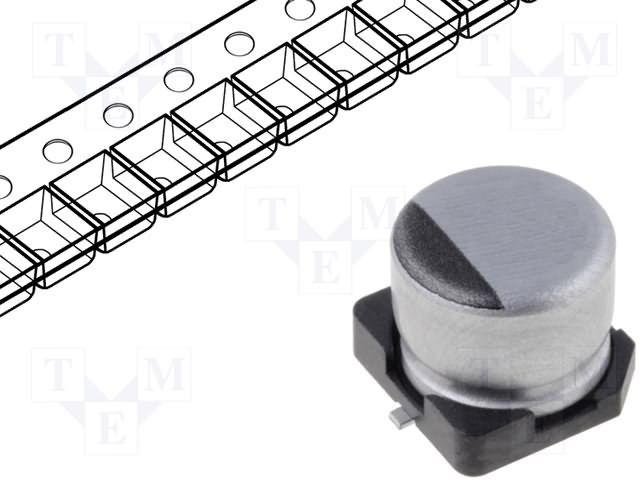

Product Images
