330µF, 35V polarized aluminum electrolytic capacitor with a 20% tolerance. Features a 10mm diameter, 10mm height, and 4.5mm lead pitch, suitable for surface mount applications. Offers a 1000-hour life at 105°C, with a leakage current of 3µA and ripple current of 300mA. This RoHS compliant component is supplied in tape and reel packaging.
PackageRadial
Voltage35V
Capacitance330uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UWT1V331MNL1GS technical specifications.
General
Capacitance
330uF
Package/Case
Radial
Construction
Cylindrical
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
0.14%
Height
10mm
Lead Diameter
1.1mm
Lead Free
Lead Free
Lead Pitch
4.5mm
Leakage Current
3uA
Length
10mm
Life (Hours)
1000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
300mA
Ripple Current (AC)
300mA
RoHS Compliant
Yes
Series
WT
Termination
SMD/SMT
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Nichicon UWT1V331MNL1GS Datasheet
Download the complete datasheet for Nichicon UWT1V331MNL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

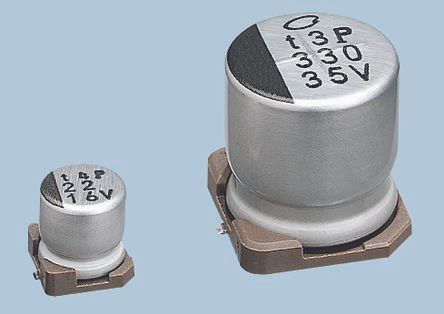

Product Images
