Aluminum electrolytic capacitor with 150µF capacitance and 6.3V DC rated voltage, featuring 20% tolerance. Surface mountable with a 6.3mm diameter and 5.4mm height, this cylindrical component offers a 71mA ripple current and 2000-hour life at 85°C. Designed for automotive applications, it operates from -40°C to 85°C with a low leakage current of 3µA.
PackageRadial
Voltage6.3V
Capacitance150uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Nichicon UWX0J151MCL1GB technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.26% |
| Height | 5.4mm |
| Height - Seated (Max) | 0.213inch |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.2mm |
| Leakage Current | 3uA |
| Length | 5.4mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 71mA |
| RoHS Compliant | Yes |
| Series | WX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWX0J151MCL1GB Datasheet
Download the complete datasheet for Nichicon UWX0J151MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

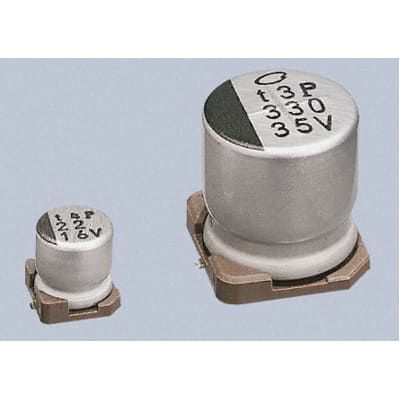

Product Images
