Standard aluminum electrolytic capacitor, 22µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a 5mm diameter, 5.4mm height, and 5.3mm width cylindrical construction for surface mount applications. Offers a ripple current of 37mA, leakage current of 3µA, and a rated life of 2000 hours at 85°C. This RoHS compliant component is supplied on tape and reel.
PackageRadial
Voltage16V
Capacitance22uF
Voltage Rating16V
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Nichicon UWX1C220MCL1GB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Nichicon UWX1C220MCL1GB technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| Height | 5.4mm |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 5.4mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 37mA |
| Ripple Current (AC) | 37mA |
| RoHS Compliant | Yes |
| Series | WX |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWX1C220MCL1GB Datasheet
Download the complete datasheet for Nichicon UWX1C220MCL1GB to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

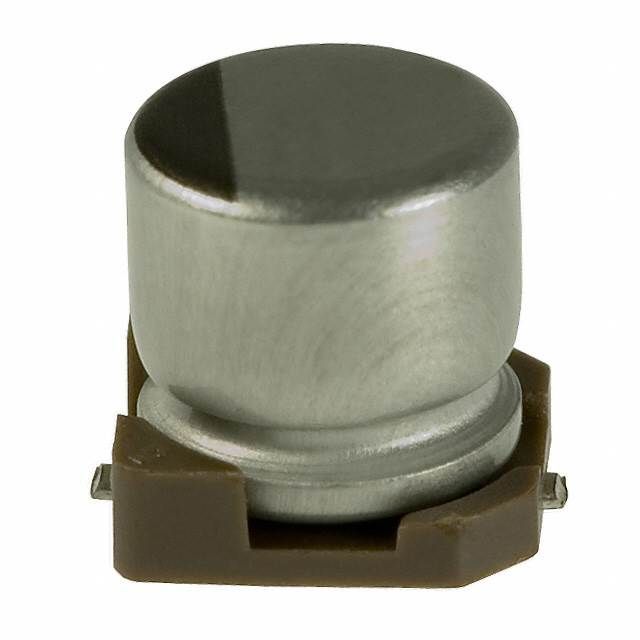

Product Images
