330µF, 35V aluminum electrolytic capacitor with 20% tolerance, suitable for surface mount applications. Features a 10mm diameter and 10mm height, cylindrical construction, and 4.5mm lead pitch. Offers a ripple current of 300mA, leakage current of 115.5µA, and a dissipation factor of 0.14%. Rated for 1000 hours at 105°C maximum operating temperature, with a minimum operating temperature of -55°C. Packaged in tape and reel, this lead-free and RoHS compliant component is designed for general-purpose use.
PackageSMD/SMT
Voltage35V
Capacitance330uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Nichicon UWZ1V331MCL1GS technical specifications.
General
| Capacitance | 330uF |
| Package/Case | SMD/SMT |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 0.14% |
| Features | General Purpose |
| Height | 10mm |
| Height - Seated (Max) | 0.394inch |
| Lead Free | Lead Free |
| Lead Pitch | 4.5mm |
| Leakage Current | 115.5uA |
| Length | 10mm |
| Life (Hours) | 1000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ripple Current | 300mA |
| RoHS Compliant | Yes |
| Series | WZ |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UWZ1V331MCL1GS Datasheet
Download the complete datasheet for Nichicon UWZ1V331MCL1GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

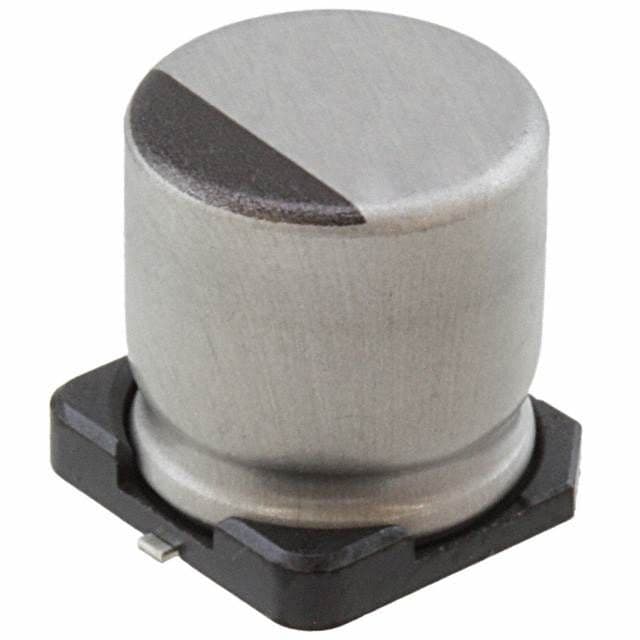

Product Images
