Aluminum electrolytic capacitor, 22µF capacitance, 4V DC rated voltage, 20% tolerance. Features a 4mm diameter, 3mm height, and 1.3mm lead pitch in a cylindrical, surface mount radial package. Operates from -40°C to 85°C with a 1000-hour life rating and 20mA ripple current. Dissipation factor is 0.5%, leakage current is 3µA.
PackageRadial
Voltage4V
Capacitance22uF
Voltage Rating4V
Quick Jump:
Technical Specifications
Nichicon UZD0G220MCL1GB technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dissipation Factor | 0.5% |
| Features | General Purpose |
| Height | 3mm |
| Height - Seated (Max) | 0.126inch |
| Lead Diameter | 0.8mm |
| Lead Pitch | 1.3mm |
| Leakage Current | 3uA |
| Length | 3mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 20mA |
| RoHS Compliant | Yes |
| Series | ZD |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 4V |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Compliant |
Datasheet
Nichicon UZD0G220MCL1GB Datasheet
Download the complete datasheet for Nichicon UZD0G220MCL1GB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

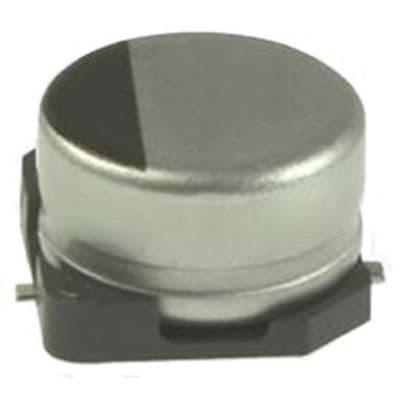

Product Images
