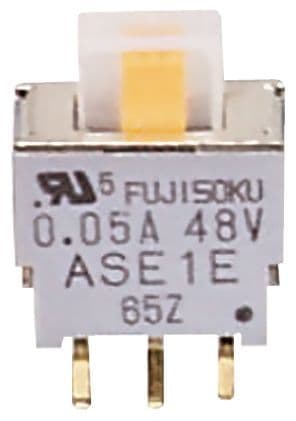

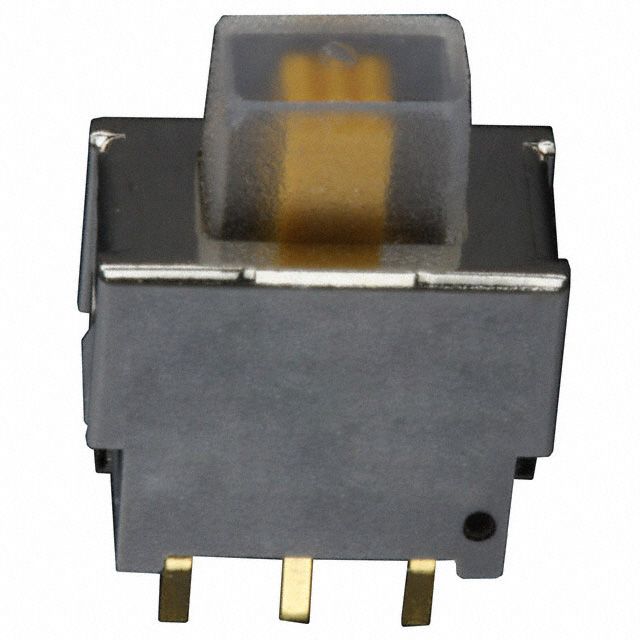

SPDT slide switch with a latched mechanism, featuring a 2.8mm standard actuator and 2.2mm switch travel. This through-hole mounted component offers a 50mA contact current rating and 60VDC voltage rating, with gold-plated contacts for enhanced durability. Designed for vertical orientation, it boasts an electrical life of 10,000 cycles and operates within a temperature range of -20°C to 85°C. The switch function is On-Off-On, and it is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nidec ASE1E-2M-10-Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 2.8mm |
| Actuator Type | Standard |
| Contact Current Rating | 50mA |
| Contact Plating | Gold |
| Electrical Life | 10000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operating Force | 500gf |
| Orientation | Vertical |
| Packaging | Tray |
| RoHS Compliant | Yes |
| Series | ASE |
| Switch Function | On-Off-On |
| Switch Travel | 2.2mm |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 60V |
| DC Rated Voltage | 60V |
| RoHS | Compliant |
