Nidec
CFPB-1CC-2R2W
Special Switch, SPST, Off-(on), Momentary, 0.001A, 20VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight,
Current Rating1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Nidec CFPB-1CC-2R2W technical specifications.
General
Actuator Type
Square, Button
Current Rating
1mA
Electrical Life
500000Cycles
Illumination Type
LED
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Mount
Through Hole
Packaging
Bag
RoHS Compliant
No
Series
CFPB
Switch Function
Off-Mom
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
20V
Compliance
RoHS
Not Compliant
Datasheet
Nidec CFPB-1CC-2R2W Datasheet
Download the complete datasheet for Nidec CFPB-1CC-2R2W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

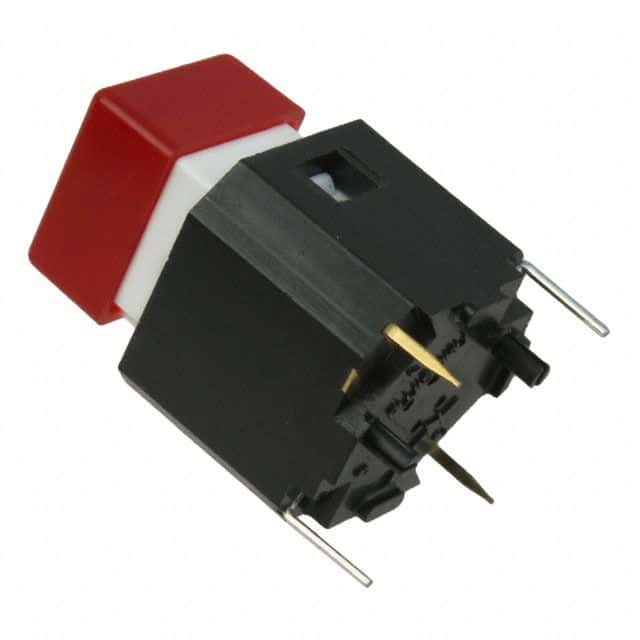

Product Images
