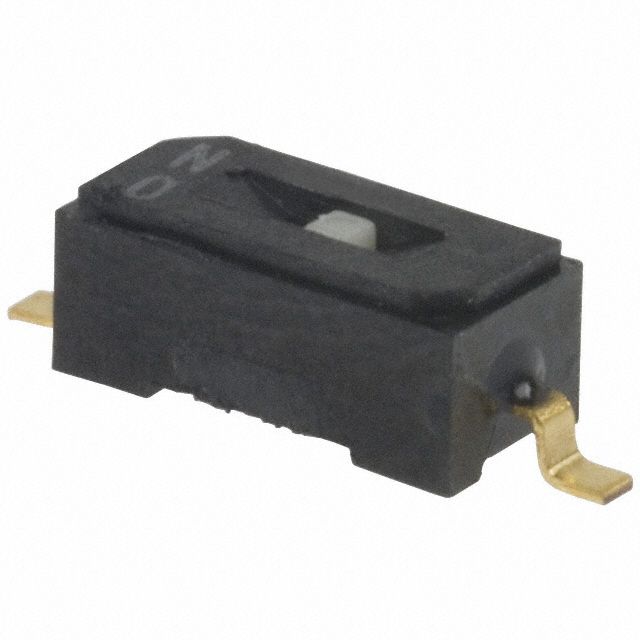

Surface mount slide DIP switch featuring a single-position, SPST throw configuration. This washable component utilizes a gold-plated copper alloy contact material and a polyphenylene body. Rated for 24V DC maximum voltage and 6V DC rated voltage, it offers an electrical life of 2000 cycles. Operating within a temperature range of -40°C to 85°C, this lead-free and RoHS compliant switch is supplied in cut tape packaging with gull wing termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nidec CHS-01TB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Nidec CHS-01TB technical specifications.
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Surface Mount |
| Number of Positions | 1 |
| Orientation | Vertical |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | CHS |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| DC Rated Voltage | 6V |
| Washable | Yes |
| RoHS | Compliant |
Download the complete datasheet for Nidec CHS-01TB to view detailed technical specifications.
