8-position, SPST slide switch with gold-plated copper alloy contacts. Features a polyphenylene body, surface mount terminal, and vertical orientation. Rated for 6V DC, this washable switch offers an electrical life of 2000 cycles and operates within a temperature range of -40°C to 85°C. Lead-free and RoHS compliant, supplied in cut tape packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Nidec CHS-08TA technical specifications.
General
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 8 |
| Orientation | Vertical |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | CHS |
| Throw Configuration | SPST |
| DC Rated Voltage | 6V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Nidec CHS-08TA Datasheet
Download the complete datasheet for Nidec CHS-08TA to view detailed technical specifications.
No datasheet is available for this part.

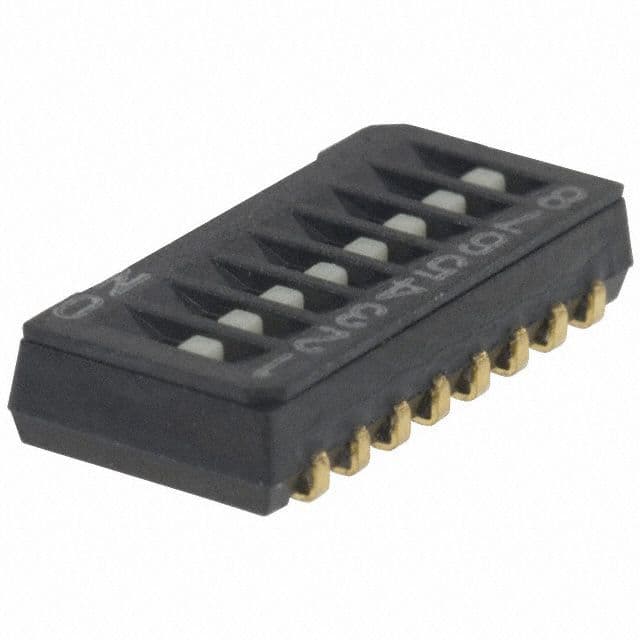

Product Images
