The CHS-08TA1 is an 8-position DIP switch with a slide actuator type and a polyphenylene body material. It features copper alloy contacts with a gold plating and is rated for 2000 electrical cycles. The switch has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is designed for surface mount applications and is available in tape and reel packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Nidec CHS-08TA1 technical specifications.
General
| Actuator Type | Slide (Standard) |
| Body Material | Polyphenylene |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 2000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 24V |
| Mount | Surface Mount |
| Number of Positions | 8 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | CHS |
| Termination | J-Hook |
| Throw Configuration | SPST, 8PST |
| DC Rated Voltage | 6V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
Nidec CHS-08TA1 Datasheet
Download the complete datasheet for Nidec CHS-08TA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

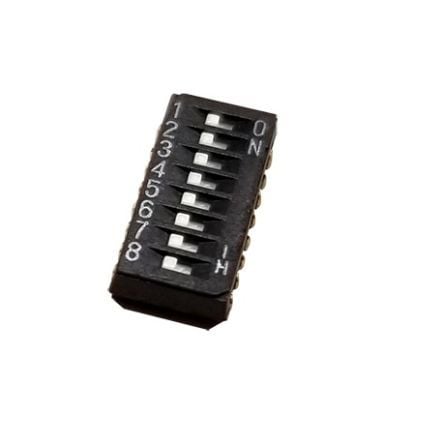

Product Images
