Technical Specifications
Nidec CHS-08TB1 technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Polyphenylene
Contact Material
Copper Alloy
Contact Plating
Gold
Electrical Life
2000Cycles
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Surface Mount
Number of Positions
8
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
CHS
Termination
Gull Wing
Throw Configuration
SPST, 8PST
DC Rated Voltage
6V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Nidec CHS-08TB1 Datasheet
Download the complete datasheet for Nidec CHS-08TB1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

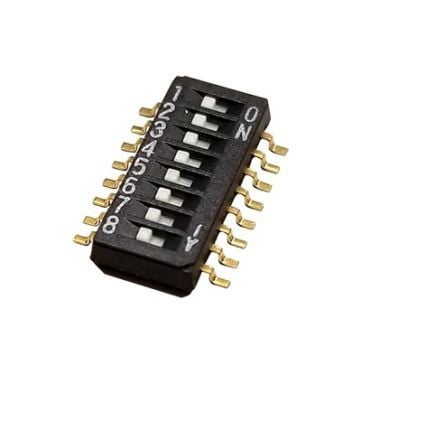

Product Images
