Technical Specifications
Nidec CL-SB-12A-02T technical specifications.
General
Actuator Length
2mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Copper
Contact Plating
Gold
Electrical Life
10000Cycles
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operating Force
153gf
Packaging
Cut Tape
Series
CL-SB
Switch Function
On-On
Switch Travel
2mm
Throw Configuration
SPDT
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Nidec CL-SB-12A-02T Datasheet
Download the complete datasheet for Nidec CL-SB-12A-02T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

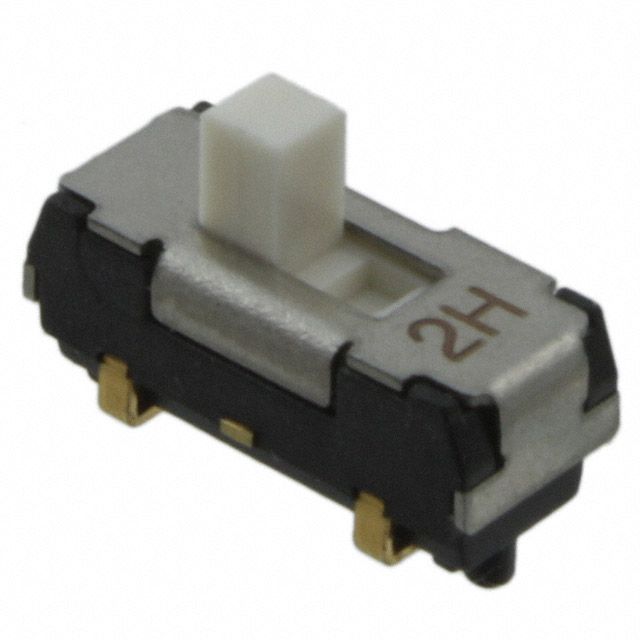

Product Images
