SPDT slide switch featuring a latched, 3-position operation. Designed for surface mount applications with gull wing termination, it offers a 0.2A current rating and 12VDC voltage rating. The switch boasts a 2mm actuator length and travel, with a standard actuator type made from Nylon/Polyamide. Contact material is copper with silver plating, providing an electrical life of 10,000 cycles. Operating force is 153gf, with an operating temperature range of -40°C to 85°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Nidec CL-SB-12B-01T technical specifications.
General
| Actuator Length | 2mm |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Standard |
| Contact Material | Copper |
| Contact Plating | Silver |
| Electrical Life | 10000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Force | 153gf |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | CL-SB |
| Switch Function | On-On |
| Switch Travel | 2mm |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| DC Rated Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
Nidec CL-SB-12B-01T Datasheet
Download the complete datasheet for Nidec CL-SB-12B-01T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

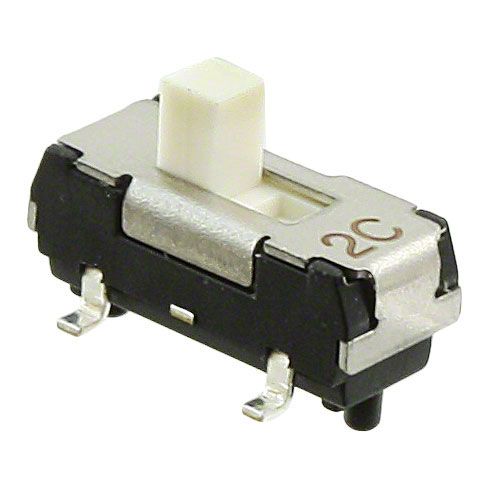

Product Images
