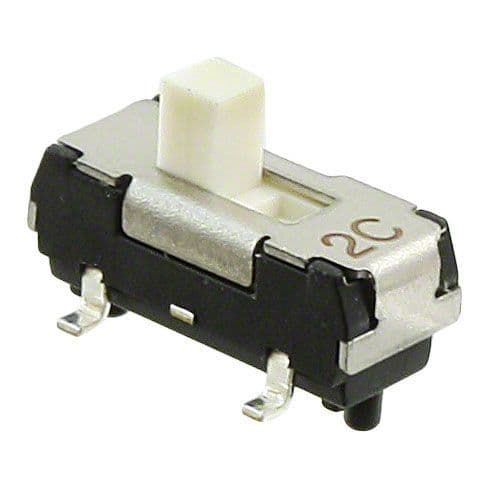

SPDT slide switch featuring gold-plated copper contacts and a 2mm nylon actuator. Surface mount design with gull wing termination, rated for 200mA at 12V DC. Offers 10,000 electrical cycles with a 2mm travel and 153gf operating force. Operates reliably between -40°C and 85°C, packaged in cut tape and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nidec CL-SB-12B-02T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 2mm |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Standard |
| Contact Material | Copper |
| Contact Plating | Gold |
| Electrical Life | 10000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Force | 153gf |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | CL-SB |
| Switch Function | On-On |
| Switch Travel | 2mm |
| Termination | Gull Wing |
| Throw Configuration | SPDT |
| DC Rated Voltage | 12V |
| RoHS | Compliant |
