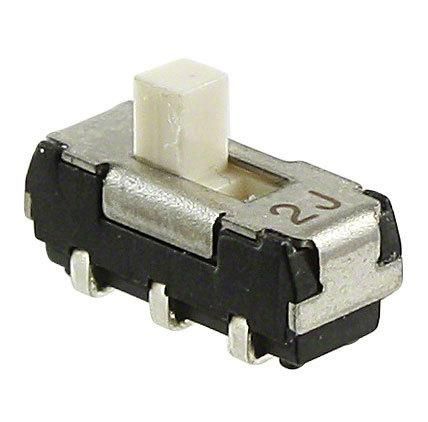

DPDT slide switch featuring gold-plated copper contacts and a 2mm actuator travel. Rated for 200mA at 12V DC, this surface mount component offers an electrical life of 10,000 cycles. Operating temperature range is -40°C to 85°C, with a 153gf operating force. Nylon actuator material and RoHS compliance ensure reliable performance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nidec CL-SB-22A-02T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 2mm |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Standard |
| Contact Material | Copper |
| Contact Plating | Gold |
| Electrical Life | 10000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Force | 153gf |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | CL-SB |
| Switch Function | On-On |
| Switch Travel | 2mm |
| Throw Configuration | DPDT |
| DC Rated Voltage | 12V |
| RoHS | Compliant |
