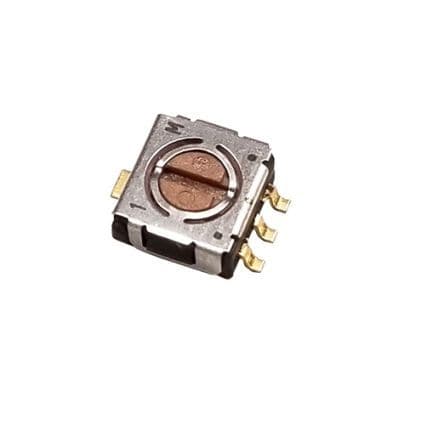

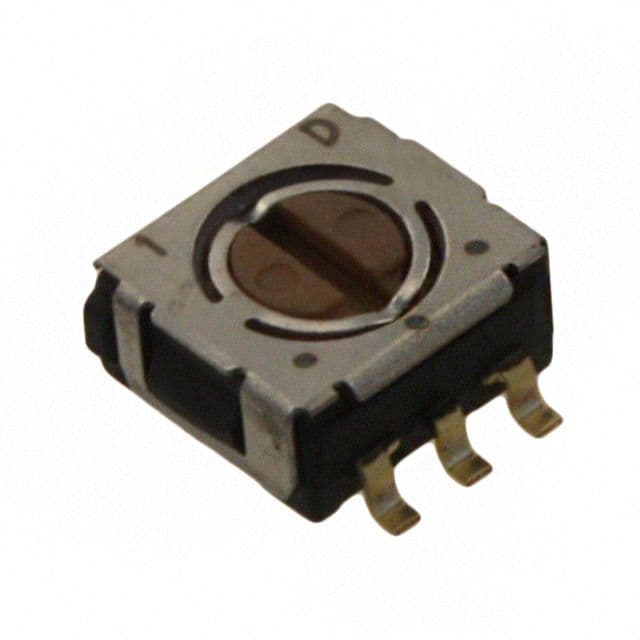

The CS-4-13NTB is a rotary DIP switch with three positions, rated for 16V DC and 100mA. It features a surface mount package and operates within a temperature range of -25°C to 70°C. The switch is constructed with an epoxy body and copper alloy contacts with gold plating, ensuring reliable electrical life of up to 200 cycles. It is lead-free and suitable for use in washable environments.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nidec CS-4-13NTB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Body Material | Epoxy |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 200Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 100mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (DC) | 16V |
| Mount | Surface Mount |
| Number of Positions | 3 |
| Orientation | Vertical |
| Packaging | Cut Tape |
| Series | CS-4 |
| Termination | Gull Wing |
| Throw Configuration | SP3T |
| DC Rated Voltage | 16V |
| Washable | Yes |
| RoHS | Compliant |
