Technical Specifications
Nidec M-22E10-0502K technical specifications.
General
Actuator Diameter
0.236inch
Actuator Length
0.906inch
Depth
21mm
Diameter
22mm
Height
27mm
Lead Free
Lead Free
Length
42mm
Linearity
0.2%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2W
Mount
Panel
Number of Gangs
1
Number of Turns
10
Packaging
Bulk
Resistance
2kR
Resistor Type
Wirewound
Series
M-22
Taper
Linear
Termination
Solder
Tolerance
5%
Compliance
RoHS
Compliant
Datasheet
Nidec M-22E10-0502K Datasheet
Download the complete datasheet for Nidec M-22E10-0502K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

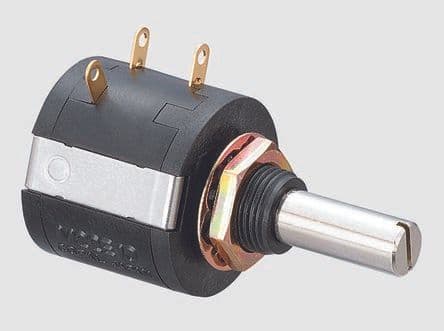

Product Images
