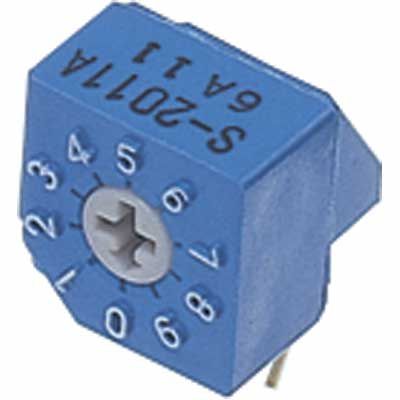

10-position rotary coded switch, featuring a binary coded decimal (BCD) output. This latched switch offers a 0.1A contact current rating at 5VDC, with gold-plated copper alloy contacts for reliable performance. Designed for through-hole, right-angle PCB mounting, it operates within a temperature range of -40°C to 85°C and is washable. Constructed with a PBT body, this RoHS compliant component ensures lead-free assembly.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Nidec S-2011A technical specifications.
General
| Actuator Type | Rotary |
| Body Material | PBT, Polybutylene |
| Contact Current Rating | 100mA |
| Contact Material | Copper Alloy, Gold |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Number of Positions | 10 |
| Orientation | Right Angle |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | S-2000A |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Nidec S-2011A Datasheet
Download the complete datasheet for Nidec S-2011A to view detailed technical specifications.
No datasheet is available for this part.
