10-position rotary DIP switch featuring a flush screwdriver actuator and gold-plated copper alloy contacts. Surface mountable with gull wing termination and 2.54mm pitch, this washable component operates within a -40°C to 85°C temperature range and is rated for 5VDC at 0.1A. The polyphenylene body ensures durability for demanding applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
Nidec SH-7010TB technical specifications.
General
| Actuator Type | Rotary |
| Body Material | Polyphenylene |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Positions | 10 |
| Packaging | Cut Tape |
| Series | SH-7000 |
| Termination | Gull Wing |
| DC Rated Voltage | 5V |
| Washable | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Nidec SH-7010TB Datasheet
Download the complete datasheet for Nidec SH-7010TB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

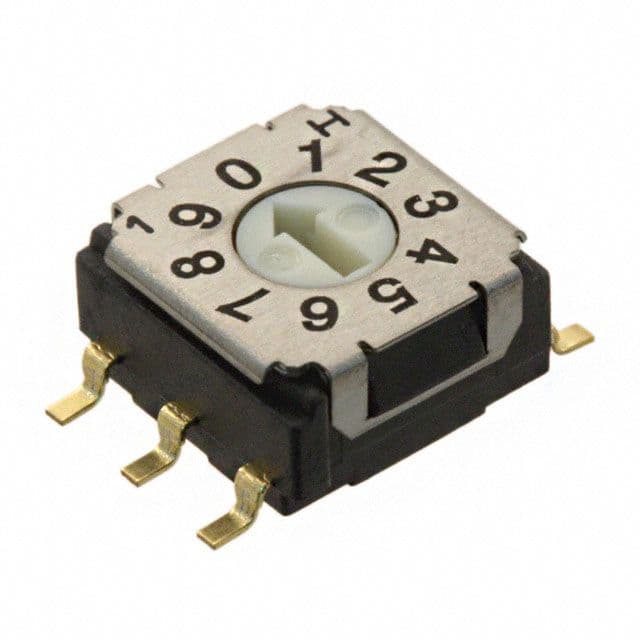

Product Images
