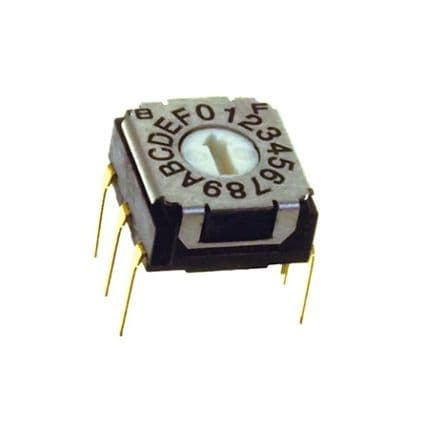

16-position rotary DIP switch with flush screwdriver actuator. Features gold-plated copper alloy contacts and polyphenylene body. Rated for 0.1A at 5VDC, with PC pin termination for through-hole mounting. Operates across a temperature range of -40°C to 85°C and is washable. Supplied in magazine packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nidec SH-7050MC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Body Material | Polyphenylene |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Positions | 16 |
| Packaging | Rail/Tube |
| Series | SH-7000 |
| Termination | PC Pin |
| DC Rated Voltage | 5V |
| Washable | Yes |
| RoHS | Compliant |
